Bosch GCM12SD
Overview
Features
- Axial-Glide System durable precision š¬Å“ consistent precision over tool life; compact workspace š¬Å“ saves up-to 12 In. workspace; glide action š¬Å“ unmatched smoothness of cut
- Expanded cutting capacity: 14 In. horizontal capacity (nominal); 6-1/2-In. vertical capacity against the fence (base); 6-1/2-In. crown capacity against the fence (45° spring)
- Upfront bevel controls - all-metal bevel lock lever and range selector located upfront for quick and easy bevel settings without reaching behind the saw
- SquareLock quick-release fences: high-precision SquareLock fence aligns 90° to table and requires no adjustment; one touch lock/unlock to slide fence for added support
- Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40 In. left to right
- Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
- Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
- Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
- Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
- Category best 90% dust collection - optimized for cutting 2x material with a vacuum
- Ergonomic ambidextrous trigger handle with soft grip - large form fitting ergonomic handle provides comfort for all-day use
What's in The Box

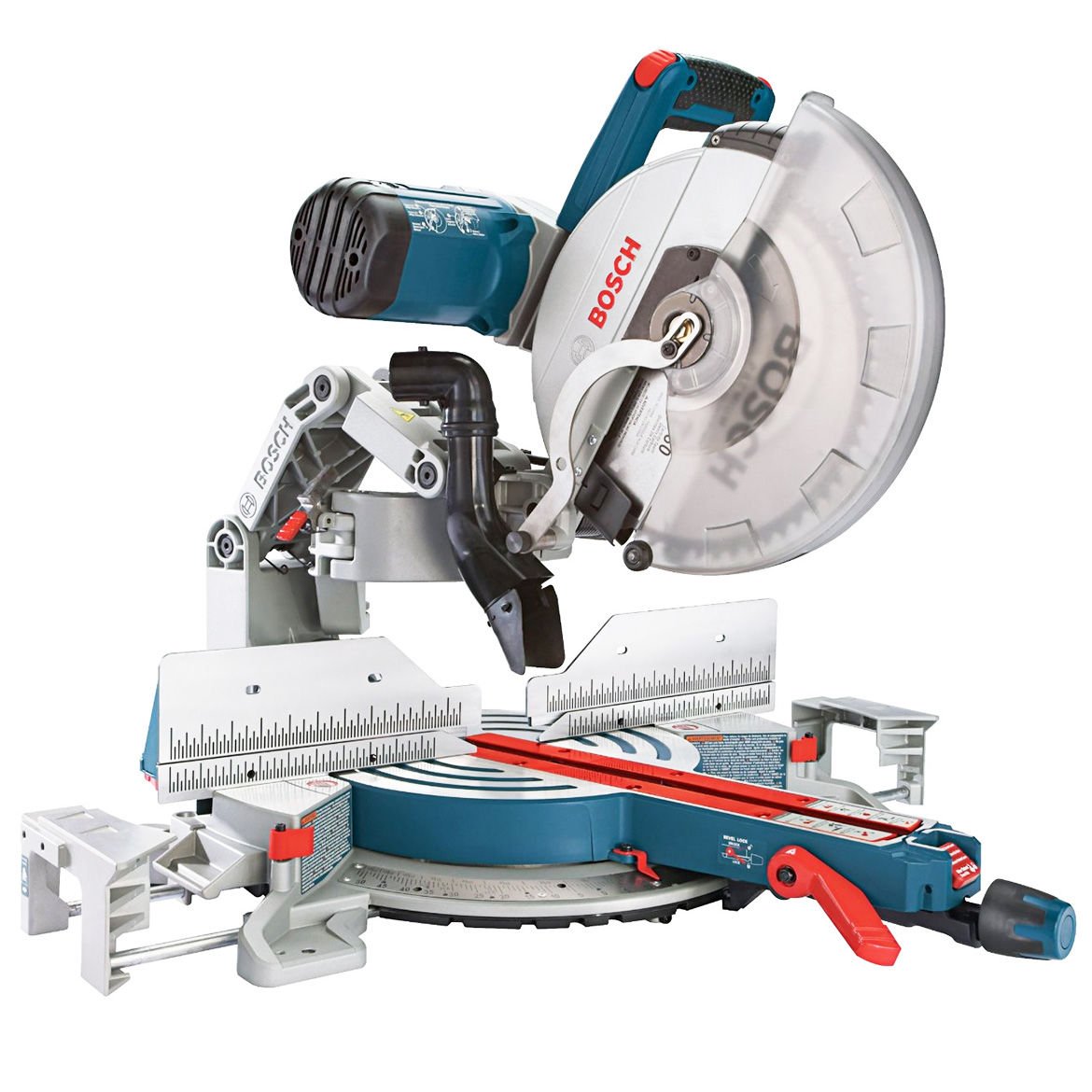

- 12 in. Dual-Bevel Glide Miter Saw - GCM12SD
- 12 in. 60T Blade
- Material Clamp
- Dust Bag
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
| Specifications | |
|---|---|
| Weight: | 65 lbs. |
| Amperage: | 15 |
| Bevel: | Dual |
| Blade Diameter: | 12 in. |
| Blade Speed (RPM): | 3800 |
| Laser Guide System: | No |
| Max. Bevel Angle (Left): | 48 Degrees |
| Max. Bevel Angle (Right): | 48 Degrees |
| Max. Miter Angle (Left): | 52 Degrees |
| Max. Miter Angle (Right): | 60 Degrees |
| Positive Miter Detents: | 9 |
| Slide System: | Dual Rail |
| Voltage: | 120V |
