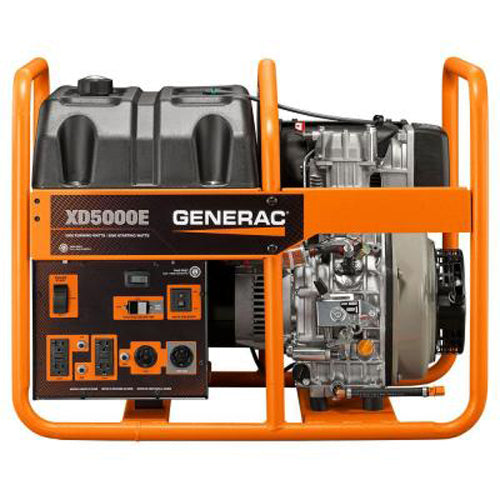

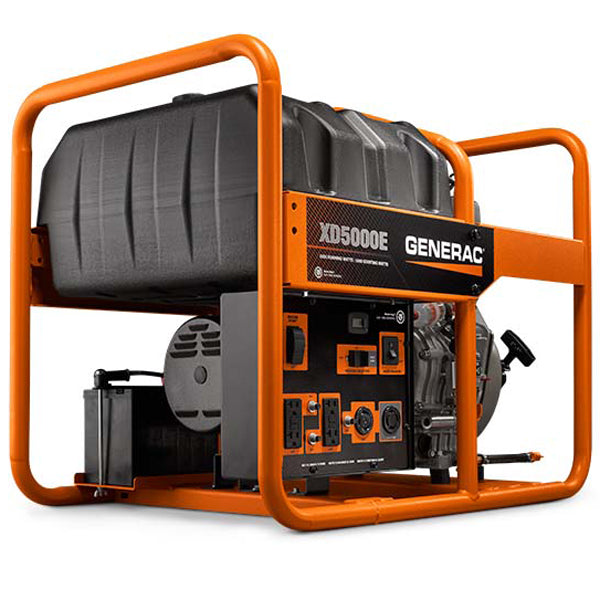

Generac XD5000E
Features
- Integrated lifting eye allows for easy transport and security on the jobsite
- 12-gallon fuel tank provides a long run-time of 32.4 hours @ 50% load
- Yanmar LW Series 435cc air-cooled direct injection, industrial-grade diesel engine
- 1-1/4 steel cradle for added strength and durability
- Single touch Electric Start for easy Start-Up

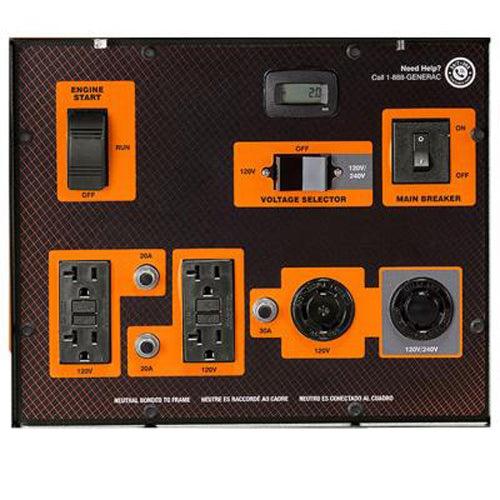

- (2) 120-Volt 20-Amp GFCI Duplex Outlets NEMA 5-20R
- (2) 20-Amp 1P push button circuit breakers
- 30-Amp psuh button circuit breaker
- Hour meter - Tracks Maintenance intervals
- 20-Amp two-pole main circuit breaker
- 120/240-Volt Voltage Selector
- 120/240-Volt TwistLock Outlet NEMA L14-30R
- 120-Volt TwistLock Outlet NEMA L5-30R
What's in The Box
- XD5000E 5000-Watt Electric Start Diesel Power Portable Generator - 6864
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 6864 |
| Brand | Generac |
| Engine Displacement | 435cc |
| Running Wattage | 5,000 Watts |
| Starting Wattage | 5,500 Watts |
| AC Voltage | 120/240V |
| Frequency | 60 Hz |
| Amperage | 41.7A / 20.8A |
| Harmonic Distortion | Less than 6-Percent |
| Engine Type | Air Cooled 4-Cycle Vertical Cylinder Diesel |
| Engine Rpm | 3,600 Rpm |
| Recommended Oil | SAE 10W-30 |
| Lubrication Method | Pressure |
| Fuel Shut Off | On Fuel Tank |
| Starting Method | Electric w/ Recoil Back-Up |
| Low OIl SHutdown Method | Low pressure |
| Neutral onded To Ground | Yes |
| Start Switch Type | Start/Run/Off |
| Switch Location | On Control Panel |
| Fuel Gauge | On Cap |
| Fuel Tank Capacity | 12 Gallons |
| Run Time at 50-Percent | 32.4 Hours |
| Wheel Type | 10.4 in. Solid |
| Length | 33.1 in. |
| Width | 22.5 in. |
| Height | 25.6 in. |
| Product Weight | 24.5 lbs. |
